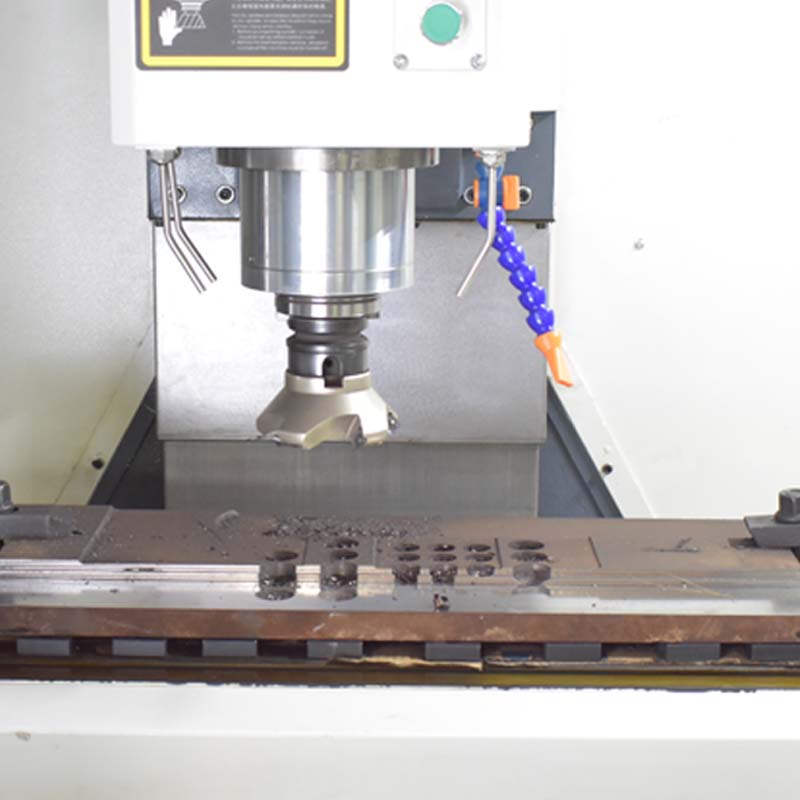

3 Axis Machining Center 400KG Max Load 3 Axis CNC Milling Machine 8000mm/Min Cutting Rapid Feed
Product description:
CNC machines are making parts around the world for almost every industry. They create things out of plastics, metals, aluminum, wood and many other hard materials.
Product Features:
1. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.
2. Machine with fast speed as the basic design starting point for parts production, precision machining, machining efficiency is maximized to provide a guarantee.
3. Bare Machine of Vertical Machining Center: fixed by vertical column, mobile structure of cross slide table.
Product Specification:
| Model No. | CNC-950QM |
| X axis travel | 900mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| Distance from spindle nose to the work table | 120-620mm |
| Distance from spindle center to column guideway | 580mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| Cutting rapid feed | 8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Feed axis motor power | 1.8/1.8/2.5KW |
| Feed motor connection form | Direct Connection |
| Taper of spindle hole | BT40 |
| The spindle of output power | 5.5/7.5KW |
| Cooling box form | Independent |
| Tool Changer | Carousel tool changer /
Side-mount tool changer |
| Tool Capacity | 12-24pieces |
| Dimension of machine tool | 2800*2200*2300mm |
| Weight of machine | 3150KG |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece samples:
Our exhibition:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
